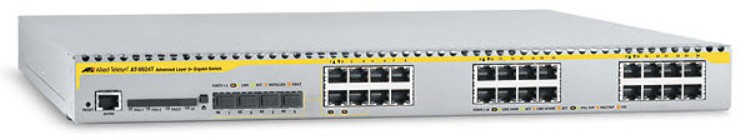

Allied Telesis AT-9900FL3UPGRD network switch Managed L3 Grey
Model AT-9900FL3UPGRD
46 specifications
- ConnectivityWired
- Noise51 dB
- Weight6.8 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Connectivity
- Wired
- Noise
- 51 dB
- Weight
- 6.8 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9900FL3UPGRD
- Part number
- AT-9900FL3UPGRD
- Also known as
- Allied Telesis AT-9900FL3UPGRD network switch Managed L3 Grey
Specifications
46 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SSH, SNMPv3, GUI, EPSR, VRRP |
| Switching protocols | OSPF, BGP-4, RIP, RIPv2, DVMRP, PIM-SM, PIM-DM |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950 |
Performance
| Specification | Value |
|---|---|
| Noise level | 51 dB |
| Mean time between failures (MTBF) | 130000 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 75 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 36 Mbit/s |
| Dimensions (WxDxH) | 440 x 440 x 44.5 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Dimensions (W x D x H) (imperial) | 424.2 x 424.2 x 44.5 mm (16.7 x 16.7 x 1.75") |
| Electromagnetic emissions | EN55022 A, FCC A, VCCI A, AS/NZS CISPR22 A |
| Electromagnetic immunity | EN55024, EN61000-3-2/3, CNS 13438 A |
| Weight (imperial) | 6.8 kg (15 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 122 °F |
| Heat dissipation | 256 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EU RoHS, UL, cUL, TUV |
