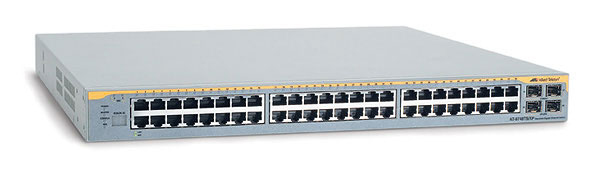

Allied Telesis AT-9748TS/XP 10/100/1000 x 48 ports Gigabit Switch
Model AT-9748TS/XP 10/100/1000 x 48 ports Gigabit SwitchPart no. AT-9748TS/XP-50
30 specifications
- Speed1 Gbit/s
- Weight6.41 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Full duplexYes
- MAC address table16384 entries
Overview
- Speed
- 1 Gbit/s
- Weight
- 6.41 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Full duplex
- Yes
- MAC address table
- 16384 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9748TS/XP 10/100/1000 x 48 ports Gigabit Switch
- Part number
- AT-9748TS/XP-50
- Also known as
- Allied Telesis AT-9748TS/XP 10/100/1000 x 48 ports Gigabit Switch Managed L3
Specifications
30 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| IP routing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 176 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, SNMP v2c, SNMP v3 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 143 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 431 x 44 mm |
| Authentication method | RADIUS |
| Power requirements | 100-240V AC, 50-60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.41 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950, FCC A, CSA 22.2 No. 950, EN55022 A, EN 60950 (TUV), EN50082-1, CE |
