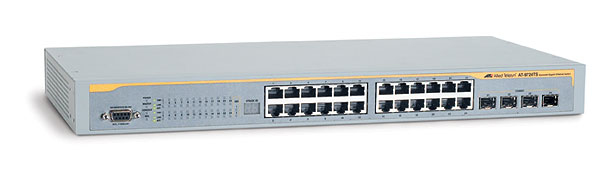

Allied Telesis AT-9724TS network switch Managed L3+
Model AT-9724TS
32 specifications
- Memory256 MB
- Speed88 Gbit/s
- ConnectivityWired
- Weight3.2 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 256 MB
- Speed
- 88 Gbit/s
- Connectivity
- Wired
- Weight
- 3.2 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9724TS
- Part number
- AT-9724TS
- Also known as
- Allied Telesis AT-9724TS network switch Managed L3+
Specifications
32 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| IP routing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Maximum data transfer rate | 88 Gbit/s |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Security algorithms | SSH |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM / Flash |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 90 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | SNMP, RMON |
| Dimensions (WxDxH) | 440 x 210 x 44 mm |
| Connectivity technology | Wired |
| Networking features | IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet |
| Power requirements | 100-240V AC/50-60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Relative humidity | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE |
