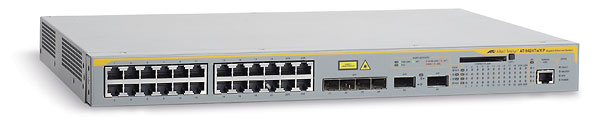

Allied Telesis AT-9424TS/XP Managed L3
Model AT-9424TS/XPPart no. AT-9424TS/XP-30EAN 767035185606
45 specifications
- ProcessorPowerPC
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight4.23 kg
- Switch typeManaged
Overview
- Processor
- PowerPC
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 4.23 kg
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9424TS/XP
- Part numbers
- AT-9424TS/XP-30, AT-9424TS/XP-10
- EAN / UPC
- 767035185606, 7670351855838
- Also known as
- Allied Telesis AT-9424TS/XP Managed L3
Specifications
45 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 136 Gbit/s |
| Throughput | 101.184 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1,v2,v3 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Safety | UL 60950-1, CSA C22.2 No. 60950-1-03, EN60950-1, EN60825-2 (TUV) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 250000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 68 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438 x 304.8 x 44 mm |
| Connectivity technology | Wired |
| Bandwidth | 48 Gbit/s |
| Authentication method | RADIUS |
| Power requirements | 100-240V AC, 4.0/2.0A, 50-60Hz |
| Wi-Fi | No |
| Expansion slots | XFP x 2 |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | FCC 15 A, EN55022 A, EN55024, VCCI A, C-TICK, EN61000-3-2, EN61000-3-3, AS/NZS 3548, EN55024 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.23 kg |
