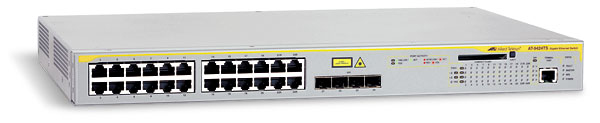

Allied Telesis AT-9424Ts Managed L3
Model AT-9424TsPart no. AT-9424TSEAN 7670351855388
39 specifications
- ProcessorPowerPC
- Memory128 MB
- Speed96 Gbit/s
- ConnectivityWired
- Weight4.21 kg
- Switch typeManaged
Overview
- Processor
- PowerPC
- Memory
- 128 MB
- Speed
- 96 Gbit/s
- Connectivity
- Wired
- Weight
- 4.21 kg
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9424Ts
- Part numbers
- AT-9424TS, AT-9424TS-30, AT-9424TS-10
- EAN / UPC
- 7670351855388, 7670351855760, 767035185538
- Also known as
- Allied Telesis AT-9424Ts Managed L3
Specifications
39 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 48 Gbit/s |
| Throughput | 71.424 Mpps |
| Maximum data transfer rate | 96 Gbit/s |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSH |
Design
| Specification | Value |
|---|---|
| Safety | UL 60950-1, CSA C22.2 No. 60950-1-03, EN60950-1, EN60825-2 (TUV) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Memory type | RAM / Flash |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 250000 h |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 54 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | Web, Telnet, CLI, SNMP |
| Dimensions (WxDxH) | 438 x 304.8 x 44 mm |
| Connectivity technology | Wired |
| Networking features | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1d, IEEE 802.3ac, IEEE 802.3x |
| Power requirements | 100-240V AC/50-60 Hz/4.0/2.0A |
| Electromagnetic emissions | FCC Part 15 Class A, EN55022 Class A, EN55024 Immunity, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3, AS/NZS 3548 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.21 kg |
