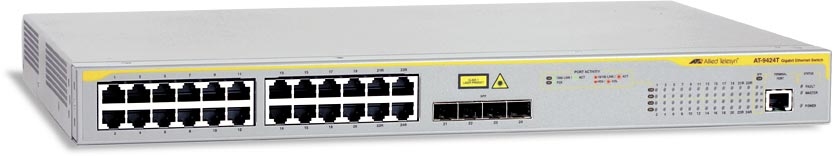

Allied Telesis AT-9424T/POE Managed L3 Power over Ethernet (PoE)
Model AT-9424T/POEPart no. AT-9424T/POE-50EAN 767035189666
35 specifications
- ProcessorPowerPC
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight6.17 kg
- Switch typeManaged
Overview
- Processor
- PowerPC
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 6.17 kg
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9424T/POE
- Part numbers
- AT-9424T/POE-50, AT-9424T/POE-30, AT-9424T/POE-10
- EAN / UPC
- 767035189666, 767035189703, 7670351897036
- Also known as
- Allied Telesis AT-9424T/POE Managed L3 Power over Ethernet (PoE)
Specifications
35 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 96 Gbit/s |
| Throughput | 71.424 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Web, CLI, SNMP |
Design
| Specification | Value |
|---|---|
| Stackable | No |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 250000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 54 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 408 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1488000 pps |
| Power requirements | 100-240V AC, 4.0/2.0A, 50-60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.17 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 60950-1, CSA C22.2 No. 60950-1-03, EN60950, EN60825 (TUV), EMI FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3, EN55024 |
