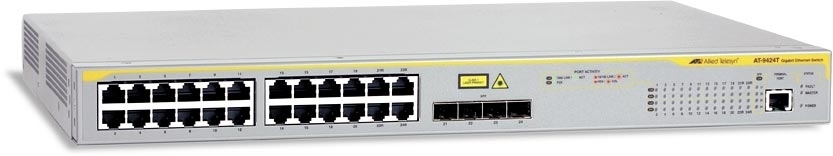

Allied Telesis AT-9424T Managed L3

Allied Telesis AT-9424T Managed L3

Model AT-9424TPart no. AT-9424T-30EAN 767035189437

43 specifications
  • ProcessorPowerPC
  • Speed1 Gbit/s
  • ConnectivityWired
  • Weight4.21 kg
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity20
See all specifications

Overview

Processor
PowerPC
Speed
1 Gbit/s
Connectivity
Wired
Weight
4.21 kg
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
20
Brand
Allied Telesis
Model
AT-9424T
Part numbers
AT-9424T-30, AT-9424T-10
EAN / UPC
767035189437, 767035189413
Also known as
Allied Telesis AT-9424T Managed L3

Specifications

43 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity20
Combo SFP ports quantity4
SFP/SFP+ slots quantity4

Network

Networking standardsIEEE 802.1d, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Full duplexYes
Link aggregationYes

Data transmission

MAC address table16000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity96 Gbit/s
Throughput71.724 Mpps
Number of trunks6
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes

Security

DHCP featuresDHCP server, DHCP client
MAC address filteringYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP v1,v2,v3

Design

StackableNo

Performance

Built-in processorYes
Processor modelPowerPC
Processor frequency200 MHz

Power

Power consumption (typical)54 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Dimensions (WxDxH)438 x 304.8 x 44 mm
Connectivity technologyWired
Authentication methodRADIUS
Networking featuresGigabit Ethernet
Packet transfer speed1488000 pps
Power requirements100-240V AC, 4.0/2.0A, 50-60Hz
Wi-FiNo
Connectivity LEDsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 90%
Operating altitude0 - 3048 m

Weight & dimensions

Weight4.21 kg

Certificates

CertificationUL 60950-1, CSA C22.2 No. 60950-1-03, EN60950, EN60825 (TUV), EMI FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3, EN55024
