Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U
Model AT-9424POE
52 specifications
- ProcessorPowerPC
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise45 dB
- Type1U
Overview
- Processor
- PowerPC
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 45 dB
- Type
- 1U
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9424POE
- Part number
- AT-9424POE
- Also known as
- Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 96 Gbit/s |
| Throughput | 71.424 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Supported network protocols | HTTP, TFTP, SNTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Noise level | 45 dB |
| Mean time between failures (MTBF) | 250000 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 54 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 408 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50 Hz |
| Networking features | Gigabit Ethernet |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Relative humidity | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.17 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 60950-1,CSA C22.2 No.60950-1-03, EN60825-2 (TUV) EN60950-1, EN55022, EN55024 EMI FCC P VCCI, C-TICK, EN61000-3-2, AS/NZS 3548 EN61000-3-3, EN55024 |
What people say
Reviews & ratings
Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U
No reviews yet
Be the first to tell others how Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U
All network switch comparisons- Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U vsAllied Telesis AT-MC606-60 network switch Managed GreyCompare specs
- Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U vsAllied Telesis AT-8100S/24POE Managed L3+ Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U vsAllied Telesis AT-SBX908-00 Managed L3 Power over Ethernet (PoE)Compare specs

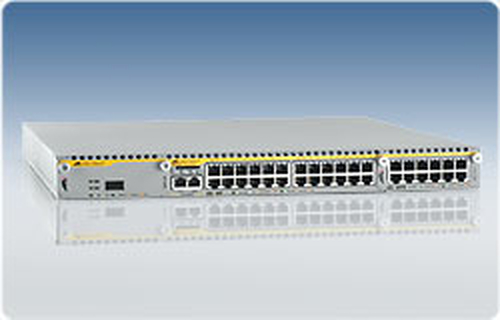

- Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U vsAllied Telesis AT X900-24XT-PCompare specs
- Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U vsIntellinet 503631 network switch Power over Ethernet (PoE) BlackCompare specs

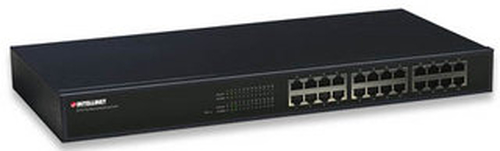

- Allied Telesis AT-9424POE network switch Managed L3 Power over Ethernet (PoE) 1U vsIntellinet 24-Port Fast Ethernet RackmountCompare specs
