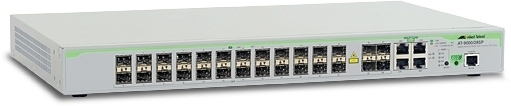

Allied Telesis AT-9000/28SP Managed L2 Gigabit Ethernet (10/100/1000)
Model AT-9000/28SPPart no. AT9000/28SP50EAN 7670351911268
32 specifications
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise41.7 dB
- Weight4.01 kg
- Switch typeManaged
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 41.7 dB
- Weight
- 4.01 kg
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9000/28SP
- Part numbers
- AT9000/28SP50, AT-9000/28SP-50, AT-9000/28SP-30, AT-9000/28SP-10, AT-9000/28SP
- EAN / UPC
- 7670351911268, 767035178936, 767035191102, 767035191089 +2 more
- Also known as
- Allied Telesis AT-9000/28SP Managed L2 Gigabit Ethernet (10/100/1000)
Specifications
32 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 24 |
| SFP/SFP+ slots quantity | 28 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | WEB, CLI, SNMP |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | UL 60950, EN 60950-1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Noise level | 41.7 dB |
| Mean time between failures (MTBF) | 340000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 37.42 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 256 x 44 mm |
| Connectivity technology | Wired |
| Power requirements | 100 - 240V AC, 50/60Hz, 1A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 127.768 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.01 kg |
