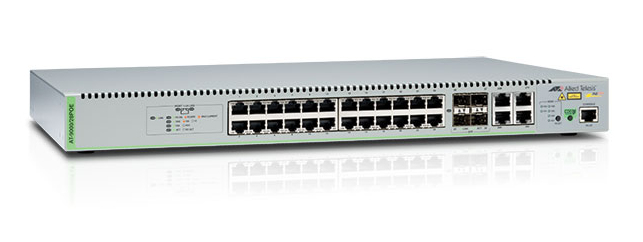

Allied Telesis AT-9000/28POE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis AT-9000/28POE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Model AT-9000/28POEPart no. 990-002653-50EAN 767035191225

60 specifications
  • Noise57.9 dB
  • Weight4.05 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
  • 10G supportNo
See all specifications

Overview

Noise
57.9 dB
Weight
4.05 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
10G support
No
Brand
Allied Telesis
Model
AT-9000/28POE
Part numbers
990-002653-50, AT-9000/28POE-10, AT-9000/28POE-30, AT-9000/28POE-50
EAN / UPC
767035191225, 767035191188, 767035191201, 7670351912012
Also known as
Allied Telesis AT-9000/28POE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

60 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportRFC 1155 MIB, RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643, RFC 2096, RFC 2790, RFC 2863

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity4
Console portRJ-45

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Broadcast storm controlYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Virtual LAN featuresTagged VLAN, Port-based VLAN
Number of VLANs4096

Data transmission

Switching capacity56 Gbit/s
Throughput41.6 Mpps
Latency (10-100 Mbps)11.56 µs
Latency (1 Gbps)3.82 µs
Number of queues8
Packet buffer memory0.5 MB

Security

IGMP snoopingYes
BPDU filtering/protectionYes
Loop protectionYes
Security algorithmsEAP-TLS, EAP-TTLS, LEAP, MD5, PEAP

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMPv1/v2c/v3

Design

Rack mountingYes
StackableYes
Product colourGrey
LED indicatorsYes
SafetyUL 60950-1 (cUlus), EN60950-1 (TUV)

Performance

Noise level57.9 dB

Power

Power supply includedYes
AC input voltage100 - 240 V
Power consumption (typical)32.4 W
Power consumption (max)401.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget370 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Heat dissipation224 BTU/h

Weight & dimensions

Width440 mm
Depth321 mm
Height44 mm
Weight4.05 kg

Packaging data

Rubber feetYes

Certificates

CertificationFCC class A, CISPR 22 class A, EN55022 class A, C-TICK, VCCI
