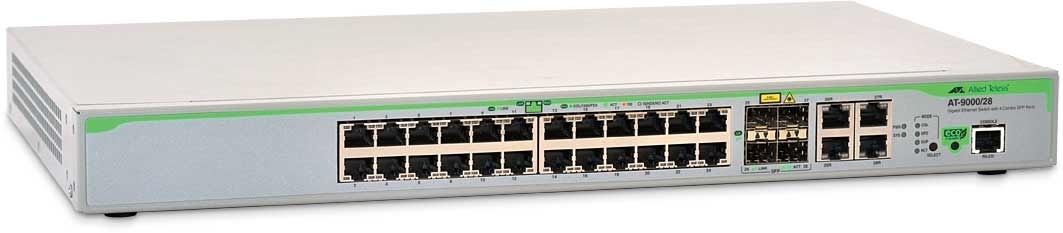

Allied Telesis AT-9000/28 network switch Managed
Model AT-9000/28Part no. AT-9000/28-10EAN 7670351908848
28 specifications
- Memory128 MB
- Speed1 Gbit/s
- Weight3.62 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- MAC address table8000 entries
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Weight
- 3.62 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- MAC address table
- 8000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-9000/28
- Part numbers
- AT-9000/28-10, AT-9000/28, AT-9000/28-50, AT-9000/28-30
- EAN / UPC
- 7670351908848, 767035190907, 7670351909210, 767035190921 +3 more
- Also known as
- Allied Telesis AT-9000/28 network switch Managed
Specifications
28 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.6 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Management protocols | WEB, CLI, SNMP |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | UL 1950 (UL/cUL), EN60950 (TUV) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 340000 h |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 256 x 44 mm |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1488000 pps |
| Power requirements | 100 - 240V AC, 50/60Hz, 1A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.62 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, EN55022 Class A, VCCI Class A, C0Tick, EN61000-3-2, EN61000-3-3 |
