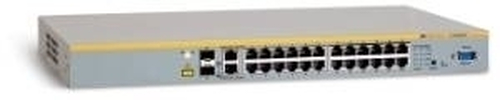

Allied Telesis AT-8948A Managed L3 1U
Model AT-8948APart no. AT-8948A-30
39 specifications
- Memory128 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Noise46 dB
- Type1U
- Weight7.1 kg
Overview
- Memory
- 128 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Noise
- 46 dB
- Type
- 1U
- Weight
- 7.1 kg
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-8948A
- Part numbers
- AT-8948A-30, AT-8948A-10, AT-8948A-XX
- Also known as
- Allied Telesis AT-8948A Managed L3 1U
Specifications
39 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 256000 entries |
| Switching capacity | 37.6 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Form factor | 1U |
| Safety | UL60950, CAN/CSA-C22.2 No. 60950-00, EN60950, AS/NZS3260 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Noise level | 46 dB |
| Mean time between failures (MTBF) | 300000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 47 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 440 x 440 x 44.5 mm |
| Connectivity technology | Wired |
| Networking features | Etherent, Fast Ethernet |
| Power requirements | 100-240V AC ±10% |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | EN55022 A, FCC A,VCCI A, EN55024, EN61000-3-2/3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 160 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 580 x 530 x 145 mm |
| Package weight | 9.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, TUV |
