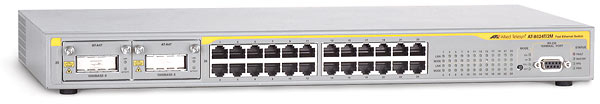

Allied Telesis AT-8624T/2M Managed L3 1U
Model AT-8624T/2MPart no. AT-8624T/2M-10EAN 767035169576
37 specifications
- ProcessorPowerPC
- Memory32 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Noise45 dB
- Type1U
Overview
- Processor
- PowerPC
- Memory
- 32 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Noise
- 45 dB
- Type
- 1U
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-8624T/2M
- Part number
- AT-8624T/2M-10
- EAN / UPC
- 767035169576, 767035181837, 7670351818376
- Also known as
- Allied Telesis AT-8624T/2M Managed L3 1U
Specifications
37 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| IP routing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | DES, SHA-1 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
| Switching protocols | Ethernet |
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Form factor | 1U |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Internal memory | 32 MB |
| Flash memory | 4 MB |
| Noise level | 45 dB |
| Mean time between failures (MTBF) | 440400 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 438 x 222 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | SSH, RADIUS, TACACS, TACACS+ |
| Networking features | Ethernet, Fast Ethernet |
| Power requirements | 100-240V AC, 50-60Hz |
| I/O ports | 24 x 10/100BASE-T |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.9 kg |
