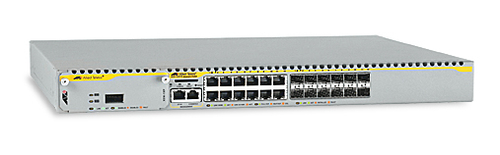

Allied Telesis AT-8516F/SC-50 Managed L2+ Power over Ethernet (PoE)
Model AT-8516F/SC-50Part no. 990-001159-50
33 specifications
- Memory32 MB
- Speed8.8 Gbit/s
- ConnectivityWired
- Weight3.5 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Memory
- 32 MB
- Speed
- 8.8 Gbit/s
- Connectivity
- Wired
- Weight
- 3.5 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-8516F/SC-50
- Part number
- 990-001159-50
- Also known as
- Allied Telesis AT-8516F/SC-50 Managed L2+ Power over Ethernet (PoE)
Specifications
33 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Number of VLANs | 255 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 8.8 Gbit/s |
| Maximum data transfer rate | 8.8 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 200 MHz |
| Internal memory | 32 MB |
| Flash memory | 4 MB |
| Mean time between failures (MTBF) | 380000 h |
Power
| Specification | Value |
|---|---|
| Input current | 2 - 4 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 80 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Management platform | Web, CLI, Serial |
| Data transfer rate | 5.4 Mbit/s |
| Dimensions (WxDxH) | 438 x 184 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 60950-1, CSA C22.2 No. 60950-1-03, EN60950, EN60825 (TUV), EMI FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3, EN55024 |
