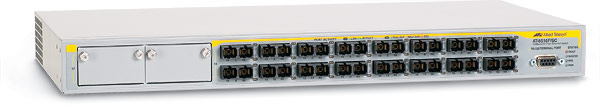

Allied Telesis AT-8516F/SC Managed L2

Allied Telesis AT-8516F/SC Managed L2

Model AT-8516F/SCPart no. AT-8516F/SC-30EAN 7670351671902

32 specifications
  • ProcessorPowerPC
  • Memory32 MB
  • Speed0.1 Gbit/s
  • ConnectivityWired
  • Weight3.5 kg
  • Switch typeManaged
See all specifications

Overview

Processor
PowerPC
Memory
32 MB
Speed
0.1 Gbit/s
Connectivity
Wired
Weight
3.5 kg
Switch type
Managed
Brand
Allied Telesis
Model
AT-8516F/SC
Part numbers
AT-8516F/SC-30, AT-8516F/SC-10
EAN / UPC
7670351671902
Also known as
Allied Telesis AT-8516F/SC Managed L2

Specifications

32 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x
Port mirroringYes
Full duplexYes
Broadcast storm controlYes

Data transmission

MAC address table8000 entries
Maximum data transfer rate0.1 Gbit/s

Protocols

Management protocolsSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP
Data link protocolsEthernet, Fast Ethernet

Design

StackableNo
SafetyUL 60950-1, CSA C22.2 No. 60950-1-03, EN60950, EN60825 (TUV)

Performance

Built-in processorYes
Processor modelPowerPC
Processor frequency200 MHz
Internal memory32 MB
Flash memory4 MB
Mean time between failures (MTBF)380000 h

Power

Power consumption (typical)80 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Data transfer rate10 Mbit/s
Dimensions (WxDxH)438 x 184 x 44 mm
Connectivity technologyWired
Power requirements100-240V AC, 50-60Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Weight3.5 kg

Certificates

CertificationEMI FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3
