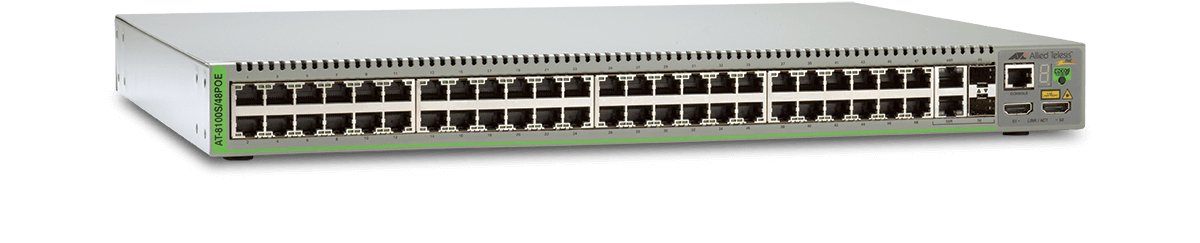

100) Power over Ethernet (PoE) 1U Grey

Model AT-8100S/48POE-30EAN 767035195001

90 specifications

Memory128 MB
Noise58.9 dB
Type1U
Weight5.6 kg
ColourGrey
Switch typeManaged

See all specifications

Overview

Memory: 128 MB
Noise: 58.9 dB
Type: 1U
Weight: 5.6 kg
Colour: Grey
Switch type: Managed

Brand: Allied Telesis
Category: Network Switch
Model: AT-8100S/48POE-30
Part number: AT-8100S/48POE-30
EAN / UPC: 767035195001, 7670351950014
Also known as: Allied Telesis AT-8100S/48POE-30 network switch Managed L2/L3/L4 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Specifications

90 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	RFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863 Interfaces group MIB, RFC 1643 Ethernet-like MIB, RFC 2618 RMON MIB, RFC 2674 IEEE 802.1Q MIB, RFC 2096 IP forwarding table MIB, Allied Telesis managed switch MIB

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	48
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Fiber optic connector	SFP
Console port	RJ-45
HDMI stacking ports	2

Network

Specification	Value
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Number of VLANs	4096

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	23.6 Gbit/s
Forwarding rate	35.1 Mpps
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9198
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps

Security

Specification	Value
DHCP features	DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	IEEE 802.1x, Network Access Control (NAC)
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
Root protection	Yes
SSH/SSL support	Yes
Security algorithms	EAP, EAP-TLS, LEAP, MD5, PEAP, SSH, SSL/TLS, TTLS

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	255

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	RIP-1, RIP-2
IPv4 & IPv6 features	Dual stack IPv4/IPv6

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes
Safety	UL 60950-1 (cUlus), EN60950-1 (TUV), EN60825

Performance

Specification	Value
Processor frequency	266 MHz
Internal memory	128 MB
Flash memory	16 MB
Noise level	58.9 dB
Telnet	Yes
sFlow	Yes
Mean time between failures (MTBF)	61000 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	459 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	48
Total Power over Ethernet (PoE) budget	370 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 3048 m
Heat dissipation	314 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	322 mm
Height	44 mm
Weight	5.6 kg

Packaging content

Specification	Value
Cables included	AC, HDMI, LAN (RJ-45)

Packaging data

Specification	Value
Included power plug types	UK
Rubber feet	Yes

Certificates

Specification	Value
Certification	FCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3
