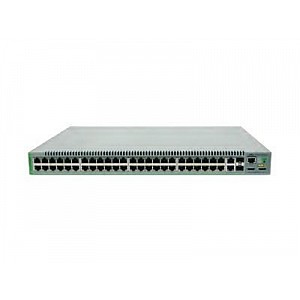

Allied Telesis AT-8100S/48POE Managed L3+ Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Allied Telesis AT-8100S/48POE Managed L3+ Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Model AT-8100S/48POEPart no. AT-8100S/48POE-50EAN 767035195025

47 specifications
  • Noise58.9 dB
  • Type1U
  • Weight5.6 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
See all specifications

Overview

Noise
58.9 dB
Type
1U
Weight
5.6 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
Brand
Allied Telesis
Model
AT-8100S/48POE
Part number
AT-8100S/48POE-50
EAN / UPC
767035195025, 7670351950250
Also known as
Allied Telesis AT-8100S/48POE Managed L3+ Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grey

Specifications

47 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3+
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
Fiber optic connectorSFP
Console portRJ-45
HDMI stacking ports2
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Copper ethernet cabling technology1000BASE-T, 100BASE-T, 10BASE-T
Auto MDI/MDI-XYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity23.6 Gbit/s
Throughput35.1 Mpps
Latency (10-100 Mbps)12 µs

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
SSH/SSL supportYes
Security algorithmsLEAP, PEAP, SSH, SSL/TLS, WPA2-RADIUS

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor1U
Product colourGrey
LED indicatorsYes
SafetyUL 60950-1 (cUlus), EN60950-1 (TUV), EN60825

Performance

Noise level58.9 dB

Power

AC input voltage100 - 240 V
AC input frequency47/63 Hz
Power consumption (typical)459 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Heat dissipation314 BTU/h

Weight & dimensions

Width440 mm
Depth441 mm
Height322 mm
Weight5.6 kg

Certificates

CertificationFCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3 EN55024
