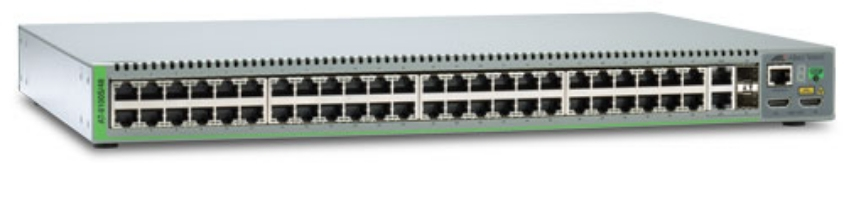

Allied Telesis AT-8100S/48 Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey

Allied Telesis AT-8100S/48 Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey

Model AT-8100S/48Part no. AT-8100S/48-50EAN 7670351937008

63 specifications

Memory128 MB
Weight4 kg
ColourGreen, Grey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48
Port mirroringYes

See all specifications

Overview

Memory: 128 MB
Weight: 4 kg
Colour: Green, Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48
Port mirroring: Yes

Brand: Allied Telesis
Category: Network Switch
Model: AT-8100S/48
Part numbers: AT-8100S/48-50, AT-8100S/48-30, AT-8100S/48-10
EAN / UPC: 7670351937008, 767035193724, 767035193700
Also known as: Allied Telesis AT-8100S/48 Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey

Specifications

63 specifications in 13 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
System event log	Yes
MIB support	RFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863, RFC 1643, RFC 2618 RMON, RFC 2674 IEEE 802.1Q, RFC 2096 IP

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity	48
Combo SFP ports quantity	2
Fiber ports quantity	2
Fiber optic connector	LC

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
IP address table	2096
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4096

Optical fiber

Specification	Value
Fiber ethernet cabling technology	100BASE-FX
Fiber type	Multi-mode

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	23.6 Gbit/s
Throughput	35.1 Mpps
Number of static routes	4000
Jumbo frames support	Yes

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Static port security	Yes

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	255

Design

Specification	Value
Rack mounting	Yes
Stackable	No
Product colour	Green, Grey
Safety	UL 60950-1 (cUlus), EN60950-1 (TUV), EN60825
Electromagnetic compatibility	EMI: FCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3

Performance

Specification	Value
Processor frequency	266 MHz
Internal memory	128 MB
Flash memory	16 MB
Mean time between failures (MTBF)	300000 h

Power

Specification	Value
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (typical)	23.2 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m

Weight & dimensions

Specification	Value
Width	440 mm
Depth	441 mm
Height	291 mm
Weight	4 kg
