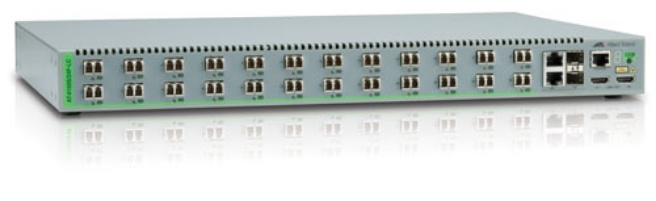

Allied Telesis AT-8100S/24F-LC Managed L3 Green, Grey

Allied Telesis AT-8100S/24F-LC Managed L3 Green, Grey

Model AT-8100S/24F-LCPart no. AT-8100S/24F-LC-10EAN 7670351941722

61 specifications
  • Memory128 MB
  • Noise55.4 dB
  • Weight4.4 kg
  • ColourGreen, Grey
  • Switch typeManaged
  • Combo SFP ports quantity2
See all specifications

Overview

Memory
128 MB
Noise
55.4 dB
Weight
4.4 kg
Colour
Green, Grey
Switch type
Managed
Combo SFP ports quantity
2
Brand
Allied Telesis
Model
AT-8100S/24F-LC
Part numbers
AT-8100S/24F-LC-10, AT-8100S/24F-LC-50, AT-8100S/24F-LC-30
EAN / UPC
7670351941722, 767035194219, 767035194196, 767035194172
Also known as
Allied Telesis AT-8100S/24F-LC Managed L3 Green, Grey

Specifications

61 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
System event logYes
MIB supportRFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863, RFC 1643, RFC 2618 RMON, RFC 2674 IEEE 802.1Q, RFC 2096 IP

Ports & interfaces

Combo SFP ports quantity2
Fiber ports quantity24
Fiber optic connectorLC, SFP

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Full duplexYes
IP routingYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Head-of-line (HOL) blockingYes
IP address table2096
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs4096

Optical fiber

Fiber ethernet cabling technology100BASE-FX
Fiber typeMulti-mode

Data transmission

MAC address table16000 entries
Switching capacity18.8 Gbit/s
Throughput27.9 Mpps
Jumbo frames supportYes

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Static port securityYes

Multicast features

Multicast supportYes
Number of multicast groups filtered255

Design

Rack mountingYes
StackableYes
Product colourGreen, Grey
LED indicatorsYes
SafetyUL 60950-1 (cUlus), EN60950-1 (TUV), EN60825
Electromagnetic compatibilityEMI: FCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3

Performance

Processor frequency266 MHz
Internal memory128 MB
Flash memory16 MB
Noise level55.4 dB
Mean time between failures (MTBF)140000 h

Power

Redundant power supply (RPS) supportYes
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency47/63 Hz
Power consumption (typical)22 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m

Weight & dimensions

Width440 mm
Depth441 mm
Height291 mm
Weight4.4 kg
