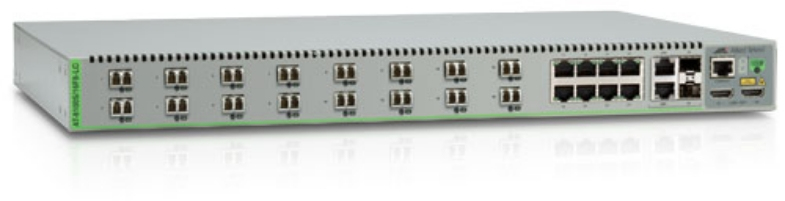

Allied Telesis AT-8100S/16F8-LC Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey

Allied Telesis AT-8100S/16F8-LC Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey

Model AT-8100S/16F8-LCPart no. AT-8100S/16F8-LC-50EAN 7670351963052

58 specifications
  • Memory128 MB
  • Noise55.4 dB
  • Weight4.4 kg
  • ColourGreen, Grey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
See all specifications

Overview

Memory
128 MB
Noise
55.4 dB
Weight
4.4 kg
Colour
Green, Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
Brand
Allied Telesis
Model
AT-8100S/16F8-LC
Part numbers
AT-8100S/16F8-LC-50, AT-8100S/16F8-LC-30, AT-8100S/16F8-LC-10
EAN / UPC
7670351963052, 7670351963298, 767035196305
Also known as
Allied Telesis AT-8100S/16F8-LC Managed L3 Gigabit Ethernet (10/100/1000) Green, Grey

Specifications

58 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
System event logYes
MIB supportRFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863 Interfaces group MIB, RFC 1643 Ethernet-like MIB, RFC 2618 RMON MIB, RFC 2674 IEEE 802.1Q MIB, RFC 2096 IP forwarding table MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2
Fiber ports quantity16
Fiber optic connectorLC
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroringYes
Full duplexYes
IP routingYes
Broadcast storm controlYes
Flow control supportYes
Head-of-line (HOL) blockingYes
IP address table2096
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes

Optical fiber

Fiber ethernet cabling technology100BASE-FX
Fiber typeMulti-mode

Data transmission

MAC address table16000 entries
Switching capacity18.8 Gbit/s
Throughput27.9 Mpps
Latency (10-100 Mbps)81 µs
Jumbo frames supportYes

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Product colourGreen, Grey
LED indicatorsYes
SafetyUL 60950-1 (cUlus), EN60950-1 (TUV), EN60825
Electromagnetic compatibilityFCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3

Performance

Processor frequency266 MHz
Internal memory128 MB
Flash memory16 MB
Noise level55.4 dB
Mean time between failures (MTBF)170000 h

Power

AC input voltage100 - 240 V
AC input frequency47/63 Hz
Power consumption (typical)22 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Heat dissipation75 BTU/h

Weight & dimensions

Width440 mm
Depth441 mm
Height332 mm
Weight4.4 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Quick start guideYes
