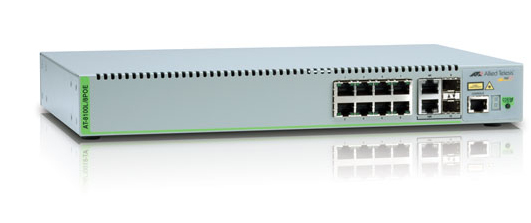

Allied Telesis AT-8100L/8POE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, Grey

Allied Telesis AT-8100L/8POE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, Grey

Model AT-8100L/8POEPart no. AT-8100L/8POE-50EAN 767035194011

56 specifications
  • Memory128 MB
  • Weight2.3 kg
  • ColourGreen, Grey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
See all specifications

Overview

Memory
128 MB
Weight
2.3 kg
Colour
Green, Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
Brand
Allied Telesis
Model
AT-8100L/8POE
Part numbers
AT-8100L/8POE-50, AT-8100L/8POE-10
EAN / UPC
767035194011
Also known as
Allied Telesis AT-8100L/8POE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, Grey

Specifications

56 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2
Fiber ports quantity2
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Port mirroringYes
Full duplexYes
IP routingYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs4096

Data transmission

MAC address table16000 entries
Switching capacity5.6 Gbit/s
Latency (10-100 Mbps)10 µs
Number of static routes4000

Security

DHCP featuresDHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes

Multicast features

Multicast supportYes
Number of multicast groups filtered255

Design

Rack mountingYes
Product colourGreen, Grey
LED indicatorsYes

Performance

Processor frequency266 MHz
Internal memory128 MB
Flash memory16 MB
Mean time between failures (MTBF)83000 h

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Total Power over Ethernet (PoE) budget185 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m

Weight & dimensions

Width330 mm
Depth203 mm
Height44 mm
Weight2.3 kg
