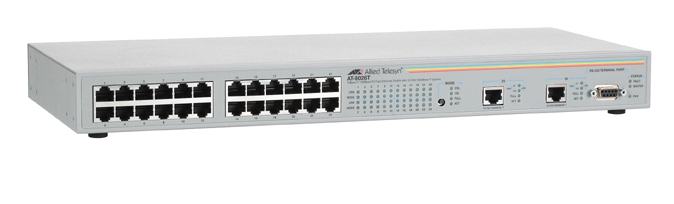

Allied Telesis AT-8026T-50 network switch Managed L2 1U Grey
Model AT-8026T-50
43 specifications
- Memory24 MB
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Weight3.5 kg
- ColourGrey
Overview
- Memory
- 24 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 3.5 kg
- Colour
- Grey
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-8026T-50
- Part number
- AT-8026T-50
- Also known as
- Allied Telesis AT-8026T-50 network switch Managed L2 1U Grey
Specifications
43 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Gigabit Ethernet (copper) ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 9.6 Gbit/s |
| Throughput | 6.5 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Supported network protocols | TFTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | RAM |
| Internal memory | 24 MB |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 63 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 44 x 438 x 222 mm |
| Connectivity technology | Wired |
| Input frequency | 50 Hz |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | Yes |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Relative humidity | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | VCCI A, EN55022, FCC, C-TICK, EN61000-3-2, EN61000-3-3, EN55024 |
