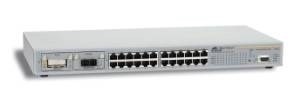

Allied Telesis AT-8024M network switch Managed Power over Ethernet (PoE)
Model AT-8024M
32 specifications
- Memory18 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight3.5 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 18 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 3.5 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-8024M
- Part number
- AT-8024M
- Also known as
- Allied Telesis AT-8024M network switch Managed Power over Ethernet (PoE)
Specifications
32 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| MIB support | RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 2674, RFC 2863 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1D, IEEE 802.1p, IEEE 802.1P, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 9.6 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 6 MB |
Design
| Specification | Value |
|---|---|
| Safety | UL 1950 (UL/cUL), EN60950 (TUV) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 18 MB |
| Mean time between failures (MTBF) | 200000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 65 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Management platform | Web, CLI, Telnet, Serial, SNMP v1 & v2c, RMON 1 |
| Latency | 8/15 ms |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 438 x 222 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet |
| Packet transfer speed | 148.800 pps |
| Power requirements | 100-240V, 50/60Hz |
| Expansion slots | 1x |
| Electromagnetic emissions | FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 |
| I/O ports | 24x 10/100 Ethernet 1x RS-232 Console 1x Power |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.5 kg |
