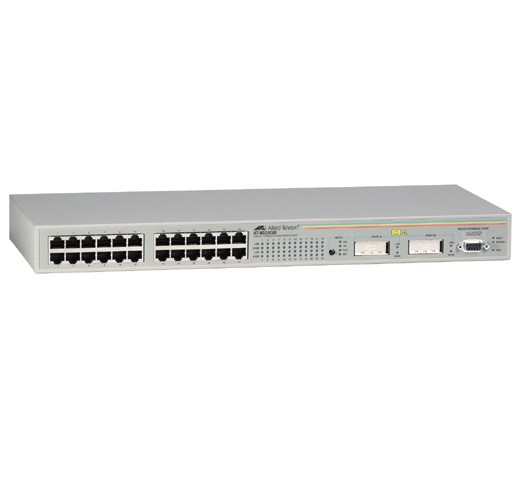

AT-8024GB, Managed Fast Ethernet Switch
Model AT-8024GB, Managed Fast Ethernet SwitchPart no. AT-8024GB
25 specifications
- Speed0.1 Gbit/s
- Weight2.7 kg
- Basic switching RJ-45 Ethernet ports quantity24
- Copper ethernet cabling technology100Base-TX, 10Base-T
- MAC address table4000 entries
- Management protocolsSNMP, Telnet
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 2.7 kg
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Copper ethernet cabling technology
- 100Base-TX, 10Base-T
- MAC address table
- 4000 entries
- Management protocols
- SNMP, Telnet
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-8024GB, Managed Fast Ethernet Switch
- Part number
- AT-8024GB
- Also known as
- Allied Telesis AT-8024GB, Managed Fast Ethernet Switch
Specifications
25 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| MIB support | MIB II, Bridge, Interface Group, Ethernet, Remote Network |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 9.6 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 6 MB |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, Telnet |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 46000 h |
Other features
| Specification | Value |
|---|---|
| Management platform | Web-based, Console |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 440 x 185 x 44 mm |
| Networking features | Ethernet, Fast Ethernet |
| Packet transfer speed | 1 488 000pps |
| Power requirements | 100-240V AC; 50/60 Hz |
| Power supply | 30 W |
| Expansion slots | 2x GBIC |
| I/O ports | 24x Fast Ethernet 1x RS-232 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A En 60950 (TUV) EN50082-1 VCCI |
