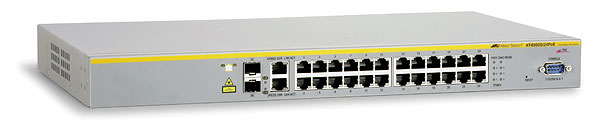

Allied Telesis AT-8000S24POE network switch Unmanaged L2 Power over Ethernet (PoE)
Model AT-8000S24POE
52 specifications
- Memory64 MB
- Speed12.8 Gbit/s
- ConnectivityWired
- Noise50.8 dB
- Weight3.7 kg
- Switch typeUnmanaged
Overview
- Memory
- 64 MB
- Speed
- 12.8 Gbit/s
- Connectivity
- Wired
- Noise
- 50.8 dB
- Weight
- 3.7 kg
- Switch type
- Unmanaged
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-8000S24POE
- Part number
- AT-8000S24POE
- Also known as
- Allied Telesis AT-8000S24POE network switch Unmanaged L2 Power over Ethernet (PoE)
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Console port | RS-232 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 40 km |
| Wavelength | 1310 nm |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 12.8 Gbit/s |
| Throughput | 9.52 Mpps |
| Maximum data transfer rate | 12.8 Gbit/s |
| Packet buffer memory | 1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 400 MHz |
| Memory type | RAM |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Noise level | 50.8 dB |
| Mean time between failures (MTBF) | 194113 h |
Power
| Specification | Value |
|---|---|
| Input current | 3.5 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 236 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Latency | 85.39/17.76/2.72 μsec |
| Dimensions (WxDxH) | 440 x 257 x 43 mm |
| Connectivity technology | Wired |
| Bandwidth | 4 Gbit/s |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 (UL/cUL), EN60950 (TUV), FCC A, EN55022 A, VCCI A, C-Tick, EN61000-3-2, EN61000-3-3, EN55024, RoHs |
