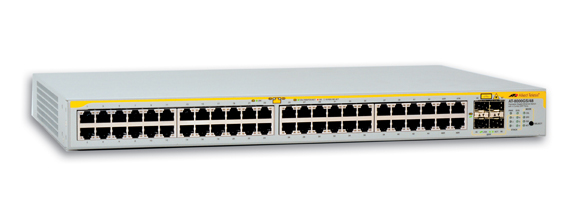

Allied Telesis AT-8000GS/48-50 Managed L2
Model AT-8000GS/48-50Part no. 990-002125-50
40 specifications
- Memory128 MB
- Speed136 Gbit/s
- ConnectivityWired
- Noise44 dB
- Weight3.38 kg
- Switch typeManaged
Overview
- Memory
- 128 MB
- Speed
- 136 Gbit/s
- Connectivity
- Wired
- Noise
- 44 dB
- Weight
- 3.38 kg
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-8000GS/48-50
- Part number
- 990-002125-50
- Also known as
- Allied Telesis AT-8000GS/48-50 Managed L2
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 116 Gbit/s |
| Maximum data transfer rate | 136 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Noise level | 44 dB |
| Mean time between failures (MTBF) | 90000 h |
Power
| Specification | Value |
|---|---|
| Input current | 1.5 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 64.82 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | WEB, CLI, Telnet, SSH |
| Data transfer rate | 86.3 Mbit/s |
| Dimensions (WxDxH) | 440 x 257 x 43.2 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | 1000Mbps Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 104 °F |
| Heat dissipation | 221.23 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.38 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950, CSA22.2, TUV, CE, FCC, EN55022, VCCI, C-TICK, EN50082-1 |
