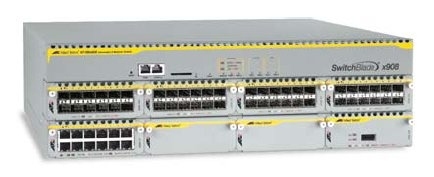

Allied Telesis 8 Slot Advanced Layer 3 Modular Switch
Model 8 Slot Advanced Layer 3 Modular SwitchPart no. AT-SBX908-00EAN 767035187525
26 specifications
- Memory512 MB
- Speed80 Gbit/s
- Type3U
- Weight14.3 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity64
Overview
- Memory
- 512 MB
- Speed
- 80 Gbit/s
- Type
- 3U
- Weight
- 14.3 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 64
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 8 Slot Advanced Layer 3 Modular Switch
- Part numbers
- AT-SBX908-00, SBX908-00
- EAN / UPC
- 767035187525, 767035204314, 7670351875256
- Also known as
- Allied Telesis 8 Slot Advanced Layer 3 Modular Switch Unmanaged 3U
Specifications
26 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 64 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 640 Gbit/s |
| Maximum data transfer rate | 80 Gbit/s |
Design
| Specification | Value |
|---|---|
| Form factor | 3U |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950 |
| Electromagnetic compatibility | EN55022 class A, FCC class A,VCCI class A |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 150000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power consumption (typical) | 510 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 456 x 132 mm |
| Power requirements | 100-240V@47-63Hz; 36-72V |
| Electromagnetic immunity | EN55024, EN61000-3-lev. 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 14.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL,TUV RoHS |
