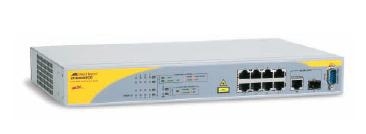

Allied Telesis 8 port 10/100TX Layer 2 Managed PoE Switch
Model 8 port 10/100TX Layer 2 Managed PoE SwitchPart no. AT-8000/8POE-50EAN 767035178882
24 specifications
- Memory20 MB
- Speed1 Gbit/s
- Weight2.2 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
Overview
- Memory
- 20 MB
- Speed
- 1 Gbit/s
- Weight
- 2.2 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 8 port 10/100TX Layer 2 Managed PoE Switch
- Part number
- AT-8000/8POE-50
- EAN / UPC
- 767035178882
- Also known as
- Allied Telesis 8 port 10/100TX Layer 2 Managed PoE Switch Power over Ethernet (PoE)
Specifications
24 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 3.6 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Safety | UL 1950 (UL/cUL), EN60950 (TUV) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 20 MB |
| Mean time between failures (MTBF) | 200000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 30 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 330 x 228 x 43.2 mm |
| Power requirements | 100-240V; 2.25A; 50-60Hz |
| Electromagnetic emissions | FCC Class A, EN55022 Class A, VCCI Class A, C0Tick, EN61000-3-2, EN61000-3-3 |
| Power availability | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55024 RoHS |
