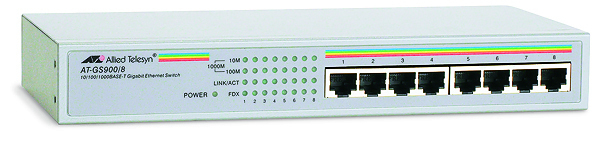

Allied Telesis 8 port 10/100/1000TX Unmanged Switch
Model 8 port 10/100/1000TX Unmanged SwitchPart no. AT-GS900/8E-20EAN 7670351780420
25 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight900 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology1000Base-T, 100Base-TX, 10Base-T
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 900 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 1000Base-T, 100Base-TX, 10Base-T
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 8 port 10/100/1000TX Unmanged Switch
- Part numbers
- AT-GS900/8E-20, AT-GS900/8-50
- EAN / UPC
- 7670351780420, 732311001574, 767035177977, 767035177984 +1 more
- Also known as
- Allied Telesis 8 port 10/100/1000TX Unmanged Switch Unmanaged
Specifications
25 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.125 MB |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 249 x 114 x 38 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Packet transfer speed | 1488000 pps |
| Power requirements | 100 - 240V, 50/60Hz |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 900 g |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950, FCC/EN55022 A, VCCI A, C-Tick, EN60950 (TUV), EN55024, CE |
