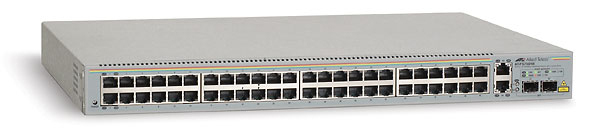

Allied Telesis 48x 10/100TX + 2x 10/100/1000T & 2 SFP Web Smart Switch, EU power cord
Model 48x 10/100TX + 2x 10/100/1000T & 2 SFP Web Smart Switch, EU power cordPart no. AT-FS750/48-50
38 specifications
- Memory32 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight2.22 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 32 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.22 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 48x 10/100TX + 2x 10/100/1000T & 2 SFP Web Smart Switch, EU power cord
- Part number
- AT-FS750/48-50
- Also known as
- Allied Telesis 48x 10/100TX + 2x 10/100/1000T & 2 SFP Web Smart Switch, EU power cord Managed
Specifications
38 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMON |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DRAM |
| Internal memory | 32 MB |
| Flash memory | 4 MB |
| Mean time between failures (MTBF) | 251000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 444 x 322 x 43.5 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS |
| Packet transfer speed | 14880/148800/1488000 pps |
| Power requirements | 98-240V@50/60Hz |
| Size (imperial) | 48.3 cm (19") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.22 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 FCC/EN55022 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE CSA / CUL |
