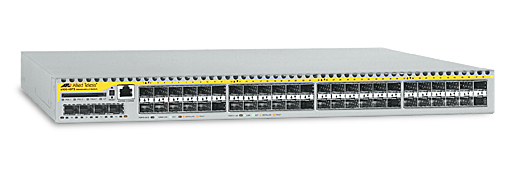

Allied Telesis 48 x FE SFP ports Layer 3 Switch
Model 48 x FE SFP ports Layer 3 SwitchPart no. AT-X900-48FS
34 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight7.1 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Full duplexYes
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 7.1 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Full duplex
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 48 x FE SFP ports Layer 3 Switch
- Part numbers
- AT-X900-48FS, X900-48FS-80, X900-48FS-60
- Also known as
- Allied Telesis 48 x FE SFP ports Layer 3 Switch Managed L3+
Specifications
34 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, DES, MD5 |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950, AS/NZS60950.1 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 300000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power consumption (typical) | 85 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 440 x 440 x 44.5 mm |
| Connectivity technology | Wired |
| Authentication method | TACACS+, RADIUS |
| Power requirements | 100-240V +/-10%, 47-63Hz; 40-60V |
| Electromagnetic emissions | EN55022 class A, FCC class A,VCCI class A |
| Electromagnetic immunity | EN55024, EN61000-3-2/3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 290 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 530 mm |
| Package depth | 580 mm |
| Package height | 145 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL,TUV RoHS |
