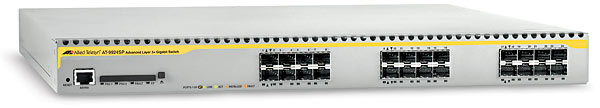

Allied Telesis 24 SFP slot Gigabit Ethernet Layer 3 Switch
Model 24 SFP slot Gigabit Ethernet Layer 3 SwitchPart no. AT-9924SP-50
26 specifications
- Memory160 MB
- Speed1 Gbit/s
- Weight6.8 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Switching capacity48 Gbit/s
Overview
- Memory
- 160 MB
- Speed
- 1 Gbit/s
- Weight
- 6.8 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Switching capacity
- 48 Gbit/s
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 24 SFP slot Gigabit Ethernet Layer 3 Switch
- Part number
- AT-9924SP-50
- Also known as
- Allied Telesis 24 SFP slot Gigabit Ethernet Layer 3 Switch Managed
Specifications
26 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 48 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 64 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 160 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 240000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power consumption (typical) | 75 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 440 x 44.5 mm |
| Power requirements | 100-240 VAC; 47-63 Hz; 40-60 VDC |
| Security features | RFC 1321 MD5 RFC 2104 HMAC FIPS 180 SHA-1 FIPS 186 RSA FIPS 46-3 DES FIPS 46-3 3DES |
| Acoustic pressure emissions | 51 dB |
| Electromagnetic emissions | EMC EN55022 class A, FCC class A,VCCI class A, AS/NZS CISPR22 class A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL,TUV RoHS |
