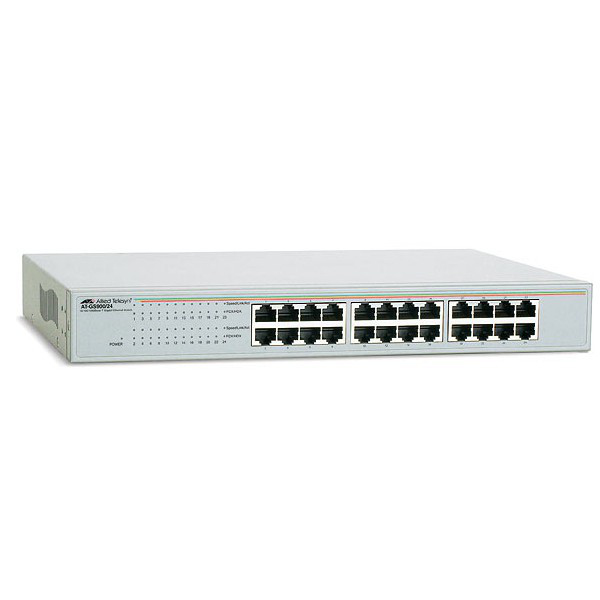

Allied Telesis 24-port 10/100/1000TX Unmanaged Switch
Model 24-port 10/100/1000TX Unmanaged SwitchPart no. AT-GS900/24-50EAN 767035177533
22 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight2.99 kg
- Basic switching RJ-45 Ethernet ports quantity24
- Copper ethernet cabling technology1000Base-T, 100Base-TX, 10Base-T
- MAC address table8000 entries
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.99 kg
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Copper ethernet cabling technology
- 1000Base-T, 100Base-TX, 10Base-T
- MAC address table
- 8000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 24-port 10/100/1000TX Unmanaged Switch
- Part numbers
- AT-GS900/24-50, AT-GS900/24
- EAN / UPC
- 767035177533, 767035177496, 767035177519, 7670351774962 +1 more
- Also known as
- Allied Telesis 24-port 10/100/1000TX Unmanaged Switch
Specifications
22 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 43 W |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 223.5 x 43.6 mm |
| Connectivity technology | Wired |
| Networking features | Etherent, Fast Ethernet, Gigabit Ethernet |
| Packet transfer speed | 1 488 000pps |
| Power requirements | 100 - 240V; 50/60Hz |
| I/O ports | 24x Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.99 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 FCC/EN55022 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE |
