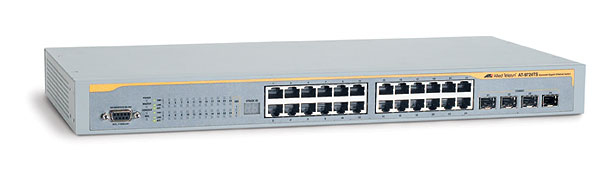

Allied Telesis 24 port 10/100/1000TX Stackable Layer 3+ Gigabit Ethernet switch + 4 SFP Combo
Model 24 port 10/100/1000TX Stackable Layer 3+ Gigabit Ethernet switch + 4 SFP ComboPart no. AT-9724TS-20
43 specifications
- Memory256 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight3.2 kg
- ColourSilver
- Switch typeManaged
Overview
- Memory
- 256 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 3.2 kg
- Colour
- Silver
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 24 port 10/100/1000TX Stackable Layer 3+ Gigabit Ethernet switch + 4 SFP Combo
- Part number
- AT-9724TS-20
- Also known as
- Allied Telesis 24 port 10/100/1000TX Stackable Layer 3+ Gigabit Ethernet switch + 4 SFP Combo Managed L3+ Silver
Specifications
43 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Full duplex | Yes |
| IP routing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSH |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMON, Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Silver |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 175283 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 90 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 440 x 210 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | TACACS/TACACS+, RADIUS |
| Packet transfer speed | 14880/148800/1488000 pps |
| Power requirements | 100-240V@50-60Hz |
| Size (imperial) | 48.3 cm (19") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Relative humidity | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE |
