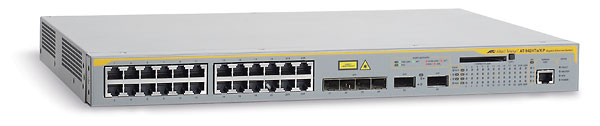

Allied Telesis 24-port 10/100/1000T L3 Switch w/ 2x XFP bays (10Gbps) & optional stacking module, EU power cord

Allied Telesis 24-port 10/100/1000T L3 Switch w/ 2x XFP bays (10Gbps) & optional stacking module, EU power cord

Model 24-port 10/100/1000T L3 Switch w/ 2x XFP bays (10Gbps) & optional stacking module, EU power cordPart no. AT-9424TS/XP-50

47 specifications
  • ProcessorPowerPC
  • Memory128 MB
  • Speed1 Gbit/s
  • ConnectivityWired
  • Weight4.23 kg
  • Switch typeManaged
See all specifications

Overview

Processor
PowerPC
Memory
128 MB
Speed
1 Gbit/s
Connectivity
Wired
Weight
4.23 kg
Switch type
Managed
Brand
Allied Telesis
Model
24-port 10/100/1000T L3 Switch w/ 2x XFP bays (10Gbps) & optional stacking module, EU power cord
Part number
AT-9424TS/XP-50
Also known as
Allied Telesis 24-port 10/100/1000T L3 Switch w/ 2x XFP bays (10Gbps) & optional stacking module, EU power cord Managed

Specifications

47 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity20
Combo SFP ports quantity4
SFP/SFP+ slots quantity4

Network

Networking standardsIEEE 802.1d, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
Link aggregationYes

Data transmission

MAC address table16000 entries
Switching capacity136 Gbit/s
Throughput101.184 Mpps
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
MAC address filteringYes
Security algorithmsSSH

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP

Design

StackableYes
SafetyUL 60950-1, CSA C22.2 No. 60950-1-03, EN60950-1, EN60825-2 (TUV)

Performance

Built-in processorYes
Processor modelPowerPC
Processor frequency200 MHz
Internal memory128 MB
Flash memory16 MB
Mean time between failures (MTBF)250000 h

Power

Power sourceAC
Power consumption (typical)68 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Data transfer rate10 Mbit/s
Dimensions (WxDxH)438 x 304.8 x 44 mm
Connectivity technologyWired
Bandwidth48 Gbit/s
Authentication methodRADIUS, TACACS+
Power requirements100-240V@50-60Hz, 4.0/2.0A
Expansion slots2x XFP
Connectivity LEDsYes
Electromagnetic emissionsFCC 15 A, EN55022 A, EN55024, VCCI A, C-TICK, EN61000-3-2, EN61000-3-3, AS/NZS 3548, EN55024

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m

Weight & dimensions

Weight4.23 kg
