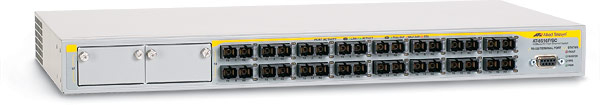

Allied Telesis 100FX (SC) x 16 ports Managed Fast Ethernet Layer 2+ Switch
Model 100FX (SC) x 16 ports Managed Fast Ethernet Layer 2+ SwitchPart no. AT-8516F/SC-50EAN 767035167237
33 specifications
- ProcessorPowerPC
- Memory32 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Type1U
- Weight3.5 kg
Overview
- Processor
- PowerPC
- Memory
- 32 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 3.5 kg
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 100FX (SC) x 16 ports Managed Fast Ethernet Layer 2+ Switch
- Part numbers
- AT-8516F/SC-50, AT-8516F/SC
- EAN / UPC
- 767035167237, 767035167190, 767035167213, 7670351672374 +1 more
- Also known as
- Allied Telesis 100FX (SC) x 16 ports Managed Fast Ethernet Layer 2+ Switch L2 1U
Specifications
33 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP |
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Form factor | 1U |
| Safety | UL 60950-1, CSA C22.2 No. 60950-1-03, EN60950, EN60825 (TUV) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Internal memory | 32 MB |
| Flash memory | 4 MB |
| Mean time between failures (MTBF) | 380000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 80 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 438 x 184 x 44 mm |
| Connectivity technology | Wired |
| Power requirements | 100-240V AC, 50-60Hz |
| Expansion slots | 2x |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EMI FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 |
