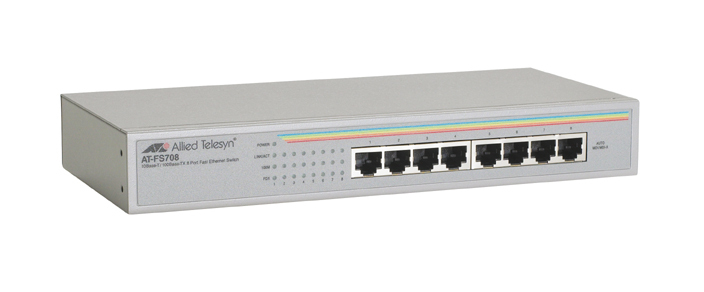

Allied Telesis 10/100TX x 8 ports rack mountable unmanaged Fast Ethernet switch
Model 10/100TX x 8 ports rack mountable unmanaged Fast Ethernet switchPart no. AT-FS708-XX
21 specifications
- Speed0.1 Gbit/s
- Weight900 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Networking standardsIEEE 802.3u, IEEE 802.3x
- MAC address table1000 entries
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 900 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- MAC address table
- 1000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100TX x 8 ports rack mountable unmanaged Fast Ethernet switch
- Part number
- AT-FS708-XX
- Also known as
- Allied Telesis 10/100TX x 8 ports rack mountable unmanaged Fast Ethernet switch
Specifications
21 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.256 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 249 x 116 x 36 mm |
| Packet transfer speed | 14800/148000 pps |
| Power requirements | 100-240V@0-60Hz; 0.4A |
| Size (imperial) | 48.3 cm (19") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 900 g |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 CSA 22.2 No. 950 FCC/EN55022 Class B VCCI Class B EN60950 (TUV) EN55024 CE |
