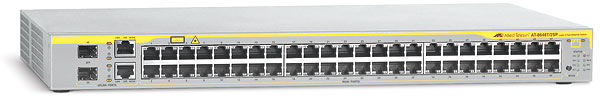

Allied Telesis 10/100TX x 48 ports Fast Ethernet Layer 3 Switch
Model 10/100TX x 48 ports Fast Ethernet Layer 3 SwitchPart no. AT-8648T/2SP-50EAN 7670351818826
30 specifications
- ProcessorPowerPC
- Memory32 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Type1U
- Weight3.6 kg
Overview
- Processor
- PowerPC
- Memory
- 32 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 3.6 kg
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100TX x 48 ports Fast Ethernet Layer 3 Switch
- Part numbers
- AT-8648T/2SP-50, AT-8648T/2SP
- EAN / UPC
- 7670351818826, 767035173870, 767035181912, 767035181882
- Also known as
- Allied Telesis 10/100TX x 48 ports Fast Ethernet Layer 3 Switch Managed L3 1U
Specifications
30 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| IP routing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP |
| Supported network protocols | RIP1, RIP2, IGMPv2, VRRP, OSPFv2 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Internal memory | 32 MB |
| Flash memory | 8 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 65 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438 x 261.6 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet |
| Power requirements | AC 120/230 V ( 50/60 Hz ) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | Safety UL 1950 (UL/cUL), EN60950 (TUV) EMI FCC Class A, EN55022 Class A,VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3 Immunity EN55024 |
