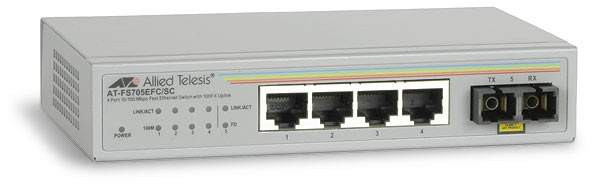

Allied Telesis 10/100TX x 4 ports plus 1x 100FX(SC) unmanaged Fast Ethernet Switch w/ External PSU
Model 10/100TX x 4 ports plus 1x 100FX(SC) unmanaged Fast Ethernet Switch w/ External PSUPart no. AT-FS705EFCSC
21 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight360 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 360 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100TX x 4 ports plus 1x 100FX(SC) unmanaged Fast Ethernet Switch w/ External PSU
- Part number
- AT-FS705EFCSC
- Also known as
- Allied Telesis 10/100TX x 4 ports plus 1x 100FX(SC) unmanaged Fast Ethernet Switch w/ External PSU L2 White
Specifications
21 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1W, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.256 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 179 x 98 x 17 mm |
| Connectivity technology | Wired |
| Connectivity LEDs | Yes |
| Networking connector | SC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 360 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, EN55022 CE, UL, CSA VCCI Class A EN60950 (TUV) EN55024 |
