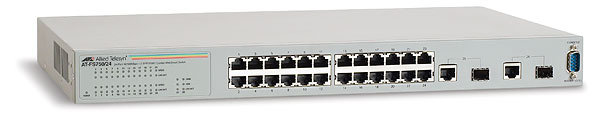

Allied Telesis 10/100TX x 24 ports WebSmart Switch w/ 2x 1000T/SFP combo ports, EU power cord
Model 10/100TX x 24 ports WebSmart Switch w/ 2x 1000T/SFP combo ports, EU power cordPart no. AT-FS750/24-50EAN 767035178578
30 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight3.24 kg
- ColourWhite
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 3.24 kg
- Colour
- White
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100TX x 24 ports WebSmart Switch w/ 2x 1000T/SFP combo ports, EU power cord
- Part number
- AT-FS750/24-50
- EAN / UPC
- 767035178578
- Also known as
- Allied Telesis 10/100TX x 24 ports WebSmart Switch w/ 2x 1000T/SFP combo ports, EU power cord Managed White
Specifications
30 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Flash memory | 1 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 440 x 257 x 43.2 mm |
| Connectivity technology | Wired |
| Packet transfer speed | 14880/148800/488000 pps |
| Power requirements | 100-240V@50/60Hz, 0.3A |
| Size (imperial) | 48.3 cm (19") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.24 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 FCC/EN55022 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE |
