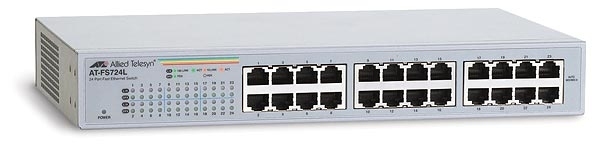

Allied Telesis 10/100TX x 24 ports unmanaged Fast Ethernet switch
Model 10/100TX x 24 ports unmanaged Fast Ethernet switchPart no. AT-FS724L-XX
23 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight1.6 kg
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 1.6 kg
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100TX x 24 ports unmanaged Fast Ethernet switch
- Part number
- AT-FS724L-XX
- Also known as
- Allied Telesis 10/100TX x 24 ports unmanaged Fast Ethernet switch White
Specifications
23 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.256 MB |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 294 x 174 x 43 mm |
| Connectivity technology | Wired |
| Power requirements | 100-240V, 0.5A |
| Size (imperial) | 48.3 cm (19") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 CSA 22.2 No. 950 FCC/EN55022 Class B EN60950 (TUV) EN55024 CE |
