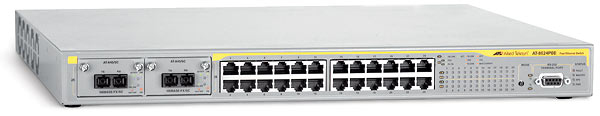

Allied Telesis 10/100TX x 24 ports Fast Ethernet PoE Switch
Model 10/100TX x 24 ports Fast Ethernet PoE SwitchPart no. AT-8624POEEAN 767035175072
31 specifications
- ProcessorPowerPC
- Memory32 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight6.2 kg
- Switch typeManaged
Overview
- Processor
- PowerPC
- Memory
- 32 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 6.2 kg
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100TX x 24 ports Fast Ethernet PoE Switch
- Part numbers
- AT-8624POE, AT-8624POE-50
- EAN / UPC
- 767035175072, 767035181820
- Also known as
- Allied Telesis 10/100TX x 24 ports Fast Ethernet PoE Switch Managed L3 Power over Ethernet (PoE)
Specifications
31 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| IP routing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | DES, SHA-1 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
| Switching protocols | Ethernet |
| Data link protocols | Ethernet, Fast Ethernet |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Internal memory | 32 MB |
| Flash memory | 4 MB |
| Mean time between failures (MTBF) | 180250 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 450 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438 x 406 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | SSH, RADIUS, TACACS, TACACS+ |
| Power requirements | 100-240vAC, 50-60Hz |
| I/O ports | 24 x 10/100BASE-T |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.2 kg |
