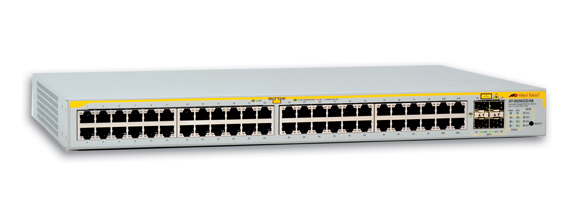

Allied Telesis 10/100/1000T x 48 ports managed stackable GE Switch w/ 4x SFP combo ports
Model 10/100/1000T x 48 ports managed stackable GE Switch w/ 4x SFP combo portsPart no. AT-8000GS/48EAN 767035188638
44 specifications
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight3.38 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 3.38 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100/1000T x 48 ports managed stackable GE Switch w/ 4x SFP combo ports
- Part number
- AT-8000GS/48
- EAN / UPC
- 767035188638
- Also known as
- Allied Telesis 10/100/1000T x 48 ports managed stackable GE Switch w/ 4x SFP combo ports
Specifications
44 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1W, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 116 Gbit/s |
| Throughput | 86.3 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSH |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, Telnet, SNMP, MIB, HTML, HTTP, TFTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Safety | UL 1950, CSA22.2 no.950, TUV (EN60950), CE |
Performance
| Specification | Value |
|---|---|
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 125 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 440 x 257 x 43.2 mm |
| Connectivity technology | Wired |
| Authentication method | TACACS+, RADIUS |
| Power requirements | 100-240V@50-60Hz; 1.5A |
| Size (imperial) | 48.3 cm (19") |
| Electromagnetic emissions | FCC Class A, EN55022 Class A, VCCI Class A, C-TICK |
| Electromagnetic immunity | EN50082-1 |
| Switch fabric speed | 136Gbps |
| Technical features | VLAN |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.38 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
