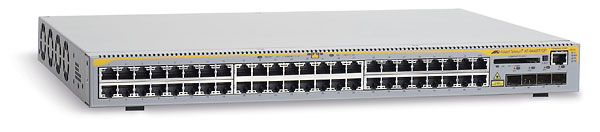

Allied Telesis 10/100/1000T x 48 ports Managed Ethernet Layer 3 Switch w/ 4 combo SFP bays
Model 10/100/1000T x 48 ports Managed Ethernet Layer 3 Switch w/ 4 combo SFP baysPart no. AT-9448T/SPEAN 767035180724
37 specifications
- ProcessorPowerPC
- Memory32 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight4.61 kg
- Switch typeManaged
Overview
- Processor
- PowerPC
- Memory
- 32 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 4.61 kg
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100/1000T x 48 ports Managed Ethernet Layer 3 Switch w/ 4 combo SFP bays
- Part number
- AT-9448T/SP
- EAN / UPC
- 767035180724, 7670351807240
- Also known as
- Allied Telesis 10/100/1000T x 48 ports Managed Ethernet Layer 3 Switch w/ 4 combo SFP bays L3
Specifications
37 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Throughput | 71.424 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMON, IGMP, Telnet |
| Switching protocols | Ethernet |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
| Internal memory | 32 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 250000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 120 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 438 x 304 x 44 mm |
| Connectivity technology | Wired |
| Packet transfer speed | 14880-1488000 pps |
| Power requirements | 100-240vAC, 50-60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.61 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A certified, C-Tick, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, FCC Part 15, AS/NZS 3548, IEC 825-2, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03 |
