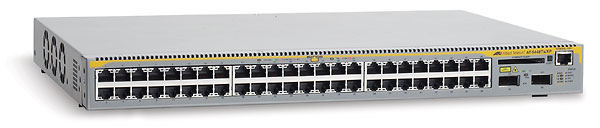

Allied Telesis 10/100/1000T x 48 ports Ethernet L3 Switch w/ 2x 10Gbps XFP, EU power cord
Model 10/100/1000T x 48 ports Ethernet L3 Switch w/ 2x 10Gbps XFP, EU power cordPart no. AT-9448TS/XP-50
40 specifications
- Memory32 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight5.04 kg
- ColourWhite
- Switch typeManaged
Overview
- Memory
- 32 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 5.04 kg
- Colour
- White
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100/1000T x 48 ports Ethernet L3 Switch w/ 2x 10Gbps XFP, EU power cord
- Part number
- AT-9448TS/XP-50
- Also known as
- Allied Telesis 10/100/1000T x 48 ports Ethernet L3 Switch w/ 2x 10Gbps XFP, EU power cord Managed White
Specifications
40 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3z |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 184 Gbit/s |
| Throughput | 136.896 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| Security algorithms | SSH |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMON, IGMP, Telnet |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Safety | UL 60950-1, CSA C22.2 No. 60950-1-03, EN60950-1, EN60825-2 (TUV) |
Performance
| Specification | Value |
|---|---|
| Memory type | RAM |
| Internal memory | 32 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 250000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 128 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 10 Mbit/s |
| Dimensions (WxDxH) | 438 x 304.8 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | TACACS+, RADIUS |
| Packet transfer speed | 14880/148800/1488000 pps |
| Power requirements | 100-240V@50-60Hz; 4.0/2.0A |
| Electromagnetic emissions | FCC Part 15 Class A, EN55022 Class A, EN55024 |
| Electromagnetic immunity | VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3, AS/NZS 3548 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.04 kg |
