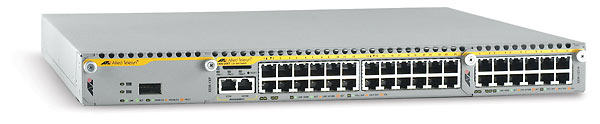

Allied Telesis 10/100/1000T x 24 ports modular Gigabit Ethernet Layer 3 switch
Model 10/100/1000T x 24 ports modular Gigabit Ethernet Layer 3 switchPart no. X900-24XT-00
47 specifications
- Memory512 MB
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Weight9.3 kg
- Switch typeManaged
Overview
- Memory
- 512 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 9.3 kg
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100/1000T x 24 ports modular Gigabit Ethernet Layer 3 switch
- Part numbers
- X900-24XT-00, X900-24XT-80
- Also known as
- Allied Telesis 10/100/1000T x 24 ports modular Gigabit Ethernet Layer 3 switch Managed L2 1U
Specifications
47 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 84 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Safety | UL, cUL,TUV |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 103000 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power consumption (typical) | 191 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 440 x 44.5 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Wi-Fi | Yes |
| Electromagnetic emissions | EN55022 A, FCC A,VCCI A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 652 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.8 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55024, EN61000-3, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
