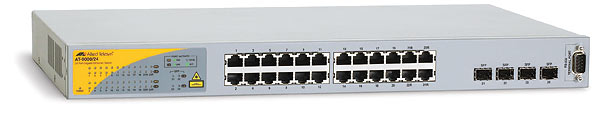

Allied Telesis 10/100/1000T x 24 ports managed Gigabit Ethernet switch w/ 4 SFP
Model 10/100/1000T x 24 ports managed Gigabit Ethernet switch w/ 4 SFPPart no. AT-9000/24EAN 767035178912
28 specifications
- Speed1 Gbit/s
- Weight3.25 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Port mirroringYes
- MAC address table8000 entries
Overview
- Speed
- 1 Gbit/s
- Weight
- 3.25 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Port mirroring
- Yes
- MAC address table
- 8000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100/1000T x 24 ports managed Gigabit Ethernet switch w/ 4 SFP
- Part numbers
- AT-9000/24, AT-9000/24-50, AT-9000/24-XX
- EAN / UPC
- 767035178912, 7670351789362
- Also known as
- Allied Telesis 10/100/1000T x 24 ports managed Gigabit Ethernet switch w/ 4 SFP L2
Specifications
28 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | UL 1950 (UL/cUL), EN60950 (TUV) |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 200000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 38 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 387 x 44 mm |
| Packet transfer speed | 14880-1488000 pps |
| Power requirements | 100-240vAC, 50-60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.25 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, EN55022 Class A, VCCI Class A, C0Tick, EN61000-3-2, EN61000-3-3 |
