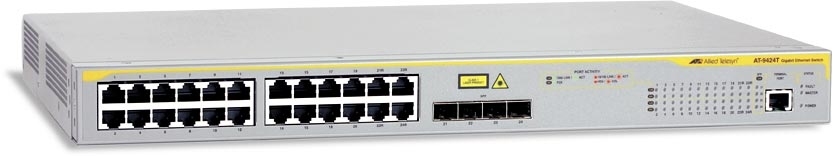

Allied Telesis 10/100/1000T x 24 ports managed Ethernet Layer 3 standalone Switch w/ 4 combo SFP bays
Model 10/100/1000T x 24 ports managed Ethernet Layer 3 standalone Switch w/ 4 combo SFP baysPart no. AT-9424T
40 specifications
- ProcessorPowerPC
- Speed1 Gbit/s
- ConnectivityWired
- Weight4.21 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity20
Overview
- Processor
- PowerPC
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 4.21 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- 10/100/1000T x 24 ports managed Ethernet Layer 3 standalone Switch w/ 4 combo SFP bays
- Part number
- AT-9424T
- Also known as
- Allied Telesis 10/100/1000T x 24 ports managed Ethernet Layer 3 standalone Switch w/ 4 combo SFP bays L3
Specifications
40 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1d, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 96 Gbit/s |
| Throughput | 71.724 Mpps |
| Number of trunks | 6 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC |
| Processor frequency | 200 MHz |
Power
| Specification | Value |
|---|---|
| Input current | 2 - 4 A |
| Power consumption (typical) | 54 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 438 x 304.8 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS |
| Input frequency | 50 - 60 Hz |
| Power requirements | 100-240VAC |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.21 kg |
