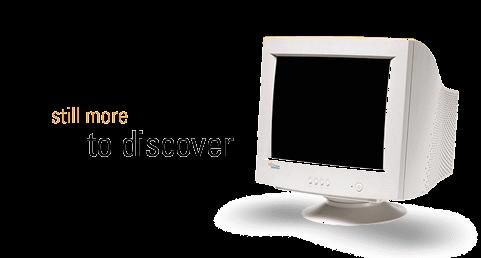

FSC C772 17IN 28MM 1280X1024NI
Model FSC C772 17IN 28MM 1280X1024NIPart no. 840002079
21 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight15.4 kg
- ErgonomicsISO 9241-3, -7, -8
- I/O ports15-pin D-Sub
- Power managementEPA, VESA, DPMS
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 15.4 kg
- Ergonomics
- ISO 9241-3, -7, -8
- I/O ports
- 15-pin D-Sub
- Power management
- EPA, VESA, DPMS
- Brand
- Fujitsu
- Category
- Monitors CRT
- Model
- FSC C772 17IN 28MM 1280X1024NI
- Part number
- 840002079
- Also known as
- Fujitsu FSC C772 17IN 28MM 1280X1024NI monitor CRT 1280 x 1024 pixels 43.2 cm (17")
Specifications
21 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | Display / CRT conventional - desktop |
| Display resolution | 1280 x 1024 pixels |
| Viewable size, vertical | 23 cm |
| Viewable size, horizontal | 30 cm |
| Viewable size diagonal | 40.5 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 72 kHz |
| Pixel pitch | 0.27 |
| Display | FST CRT |
Features
| Specification | Value |
|---|---|
| Ergonomics | ISO 9241-3, -7, -8 |
| Audio system | No |
| Plug and Play | Yes |
| Certification | EN60950, GS mark, CE certification according to EC Directive, 89/336/EEC, (EN55022/B, EN50024, EN61000-3-2/-3), MPR II, TCO’99 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 15-pin D-Sub |
Power
| Specification | Value |
|---|---|
| Power management | EPA, VESA, DPMS |
Management features
| Specification | Value |
|---|---|
| User controls | Brightness, Contrast, Picture position (horizontal and vertical), Picture size (horizontal and vertical), Zoom, Color temperature and custom color settings, Pincushion and Pin balance, Parallelogram, Trapezoidal distortion, Tilt (rotation), Moiré reduction, OSD position, Degauss, Information, Activa |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 418 x 424 x 417 mm |
| Weight | 15.4 kg |
System requirements
| Specification | Value |
|---|---|
| Compatible products | Yes, non-machine specific device |
Technical details
| Specification | Value |
|---|---|
| Monitor max. video input bandwidth | 110 MHz |
