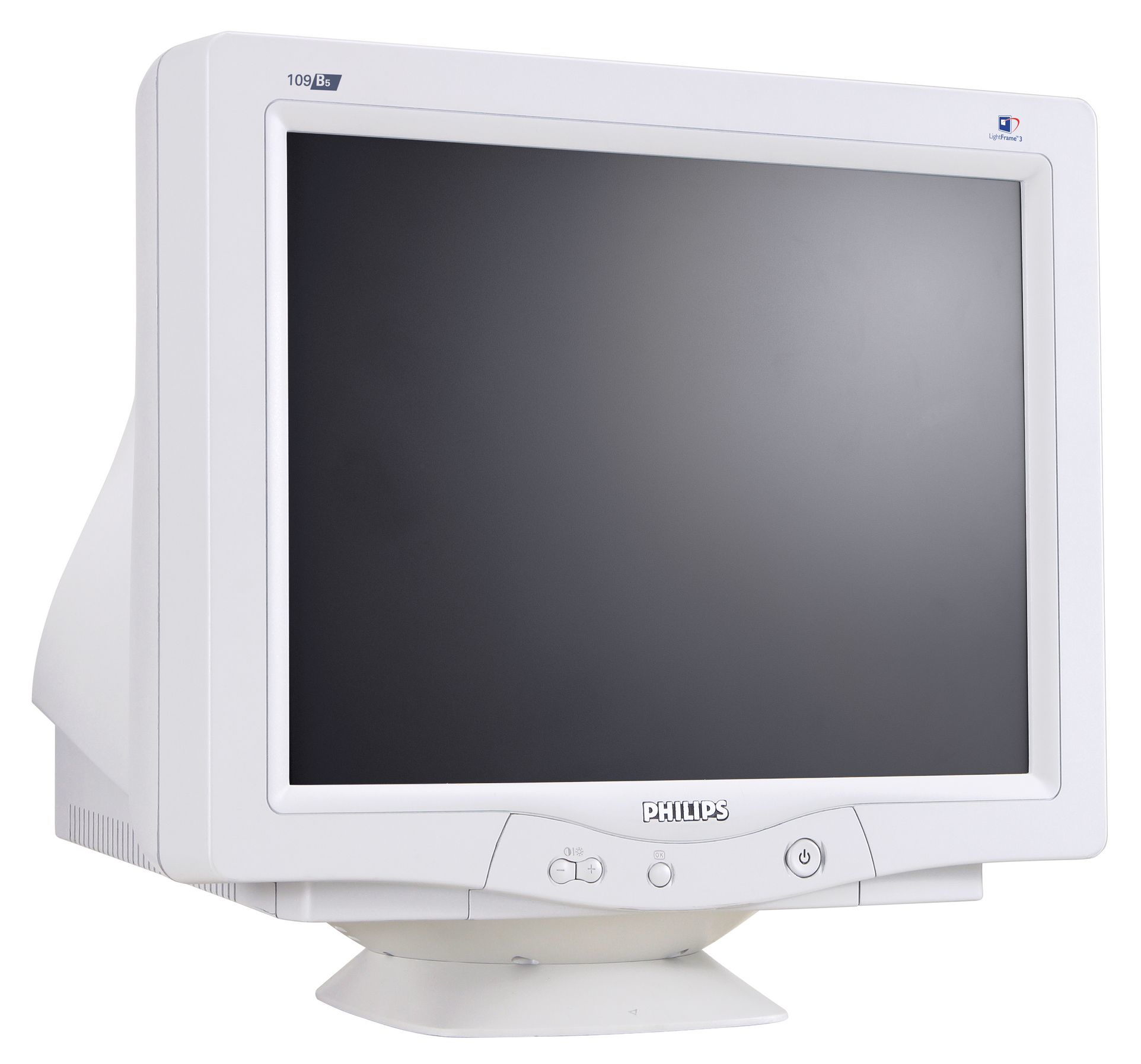

CRT monitor 109B55/75
Model 109B55/75EAN 8710895832366
31 specifications
- Display48.3 cm (19")
- TypeReal Flat picture tube
- Weight20 kg
- Swivel angle range-90 - 90°
- Power consumption (typical)70 W
- Storage temperature (T-T)-25 - 65 °C
Overview
- Display
- 48.3 cm (19")
- Type
- Real Flat picture tube
- Weight
- 20 kg
- Swivel angle range
- -90 - 90°
- Power consumption (typical)
- 70 W
- Storage temperature (T-T)
- -25 - 65 °C
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 109B55/75
- Part number
- 109B55/75
- EAN / UPC
- 8710895832366
- Also known as
- Philips CRT monitor 109B55/75
Specifications
31 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | Real Flat picture tube |
| Viewable size, vertical | 35.5 cm |
| Viewable size, horizontal | 26.5 cm |
| Viewable size diagonal | 46 cm |
| Maximum resolution | 1920 x 1440 pixels |
| Digital horizontal frequency | 30 - 97 kHz |
| Digital vertical frequency | 50 - 160 Hz |
| Display dot pitch (horizontal) | 0.21 mm |
| Display recommended refresh rate | 75 Hz |
| Display sRGB | Yes |
| Sync input impedance | 2200 Ω |
| White Chromaticity, 5500K | x = 0.332 / y = 0.347 |
| Video input impedance | 75 Ω |
Features
| Specification | Value |
|---|---|
| Swivel angle range | -90 - 90° |
| Plug and Play | Yes |
| Tilt angle range | -5 - 25° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 70 W |
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (W x D x H) with stand | 440 x 449 x 433 mm |
| Weight | 20 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Cable connection | D-sub Video Cable, Power Cord |
| Dot clock scanning frequency | 250 MHz |
| LED indicators | Operation |
| On Screen Display (OSD) languages | Simplified Chinese, Dutch, English, Spanish, French, Italian, Korean, Portuguese |
| Resolution | 1920 x 1440 pixels |
| Video Dot Rate | 250 MHz |
